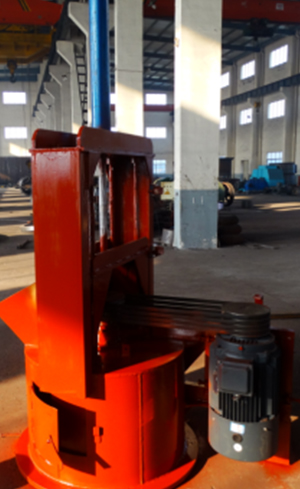

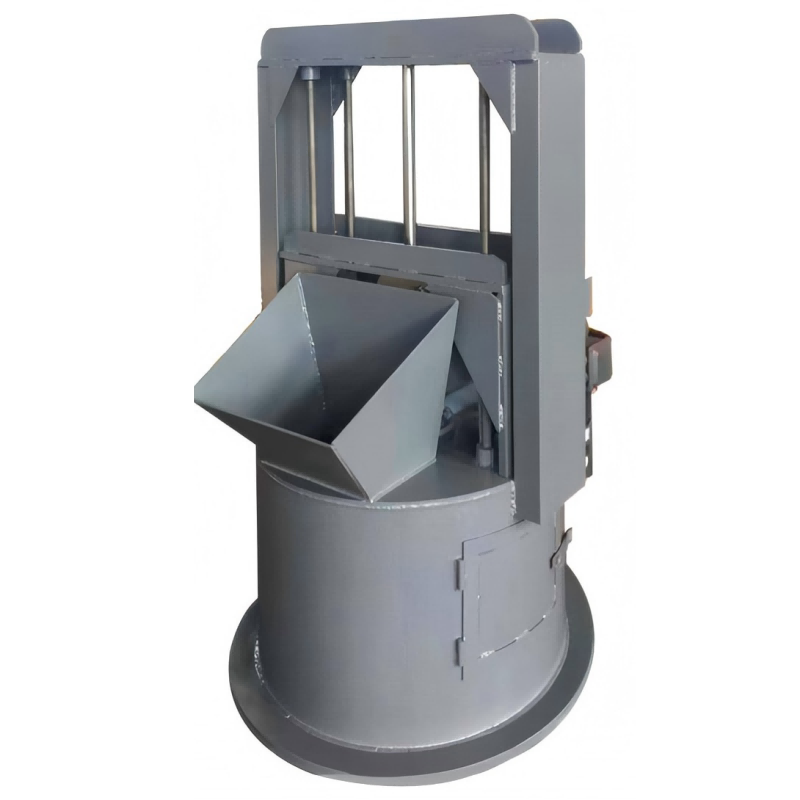

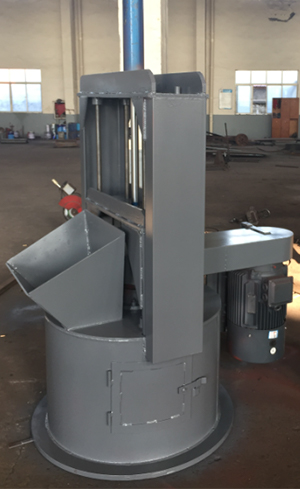

The vertical crusher is a type of impact crushing equipment that adopts a single rotor structure. It uses a steel ring chain rotating at high speed as the core component for crushing. The rotor is driven by an electric motor to make the high-strength hard alloy chain on it rotate at high speed. It uses the powerful impact force to crush fertilizer blocks and has a function of preventing wall adhesion.
 |  |
Specification
Model | Barrel diameter (mm) | Rotational speed (rpm) | Feed particle size (rpm) | Discharge particle size (mm) | Production capacity (mm) | Motor | Weight (t) | |
Model | Power (kW) | |||||||
LP600 | 600 | 1440 | ≦25 | ≦2 70% | 3-5 | Y132M-4 | 7.5 | 0.8 |
LP700 | 700 | 1460 | ≦35 | 5-8 | Y160L-4 | 15 | 1.1 | |
LP800 | 800 | 1460 | ≦50 | 9-12 | Y180L-4 | 22 | 1.3 | |
LP900 | 900 | 1470 | ≦60 | 13-16 | Y220L-4 | 30 | 1.9 | |
LP1000 | 1000 | 1480 | ≦80 | 18-24 | Y225M-4 | 45 | 2.5 | |
