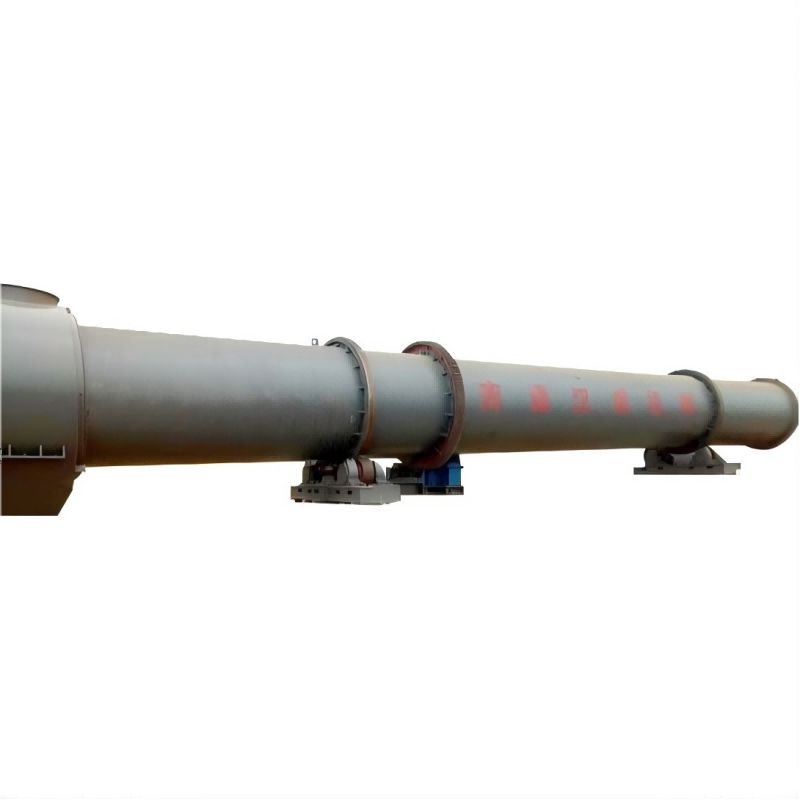

The drum cooler is an industrial cooling equipment that achieves heat exchange between the material and the airflow through a rotating cylinder. It is usually used in conjunction with a dryer. It cools and further dries high-temperature granular or powdered materials based on the principle of counter-flow contact between air and the material. It can reduce the temperature of granular materials such as compound fertilizers while enhancing the drying effect through heat exchange, and is a high-yield auxiliary equipment with high cooling efficiency and anti-caking function.
Specification
SPECIFICATION | MAIN BADY | PRODUCTION CAPACITY （t/h） | REDUCER | MOTOR | SIZE （LxWxH)(mm) | WEIGHT (t) | |||||
I.D （mm） | L （mm） | ANGEL （°） | REV （r/min） | MODEL | Speed Ratio | MODEL | POWER (kW) | ||||
Φ1.2x12 | 1200 | 10000 | 2.5 | 7 | 3-5 | JZQ500 | 40.17 | Y160M-6 | 11 | 13275x2700x3522 | 12 |
Φ1.5x15 | 1500 | 14000 | 2.5 | 6 | 4-7 | ZQ650 | 31.50 | Y180L-6 | 15 | 16800x3450x3080 | 18 |
Φ1.6x16 | 1600 | 16000 | 2.5 | 5.5 | 7-10 | ZQ650 | 23.34 | Y200L1-6 | 18.5 | 18500x3550x3180 | 23 |
Φ1.8x18 | 1800 | 18000 | 2.5 | 5 | 8-12 | ZQ650 | 23.34 | Y200L1-6 | 22 | 18680x3460x3711 | 26 |
Φ2.0x20 | 2000 | 20000 | 2.5 | 4.8 | 10-16 | ZSY280 | 22.5 | Y225M-6 | 30 | 21580x3968x4400 | 36 |
Φ2.2x22 | 2200 | 22000 | 2.5 | 4.2 | 15-20 | ZSY280 | 40.00 | Y250M-6 | 45 | 24090x4460x5250 | 48 |
Φ2.4x24 | 2400 | 24000 | 2.5 | 3.9 | 18-26 | ZSY315 | 45.00 | Y280S-6 | 55 | 25630x4100x5300 | 63 |
Φ2.6x26 | 2600 | 26000 | 2.5 | 3.6 | 22-30 | ZSY355 | 35.50 | Y280S-6 | 75 | 28000x4400x7100 | 80 |
Φ2.8x28 | 2800 | 28000 | 2.5 | 3.3 | 22-35 | ZSY400 | 45.00 | Y280S-6 | 90 | 26868x4280x5410 | 95 |
Φ2.8x34 | 2800 | 34000 | 2.5 | 2.9 | 25-40 | ZSY400 | 45.00 | Y315S-6 | 110 | 32868x4280x5410 | 105 |
Φ3.0x30 | 3000 | 28000 | 1.8 | 2.8 | 27-45 | ZSY450 | 45.00 | Y315M1-4 | 132 | 32615x5760x6269 | 120 |
Φ3.2x25 | 3200 | 25000 | 1.8 | 2.7 | 30-50 | ZSY450 | 63.00 | Y315M-4 | 160 | 29500x6500x6300 | 130 |
Φ3.4x34 | 3400 | 34000 | 1.8 | 2.56 | 35-55 | ZL130 | 45.00 | Y2-355M2-6 | 200 | 34600x6678x6540 | 160 |
Φ3.6x34 | 3600 | 34000 | 1.8 | 2.51 | 40-60 | ZL130 | 40.00 | YKK3554-4 | 250 | 34600x6890x6540 | 190 |
Φ4.0x34 | 4000 | 34000 | 1.8 | 2.09 | 50-70 | ZSY630 | 90.00 | YKK4003-4 | 315 | 36466x7800x6800 | 210 |
Φ4.2x34 | 4200 | 34000 | 1.8 | 2.09 | 70-90 | ZSY630 | 90.00 | YKK4005-4 | 400 | 37466x8000x6800 | 230 |
Φ4.5x36 | 4500 | 36000 | 1.8 | 1.86 | 80-100 | ZSY630 | 90.00 | YKK4502-4 | 500 | 38000x8300x7200 | 270 |
