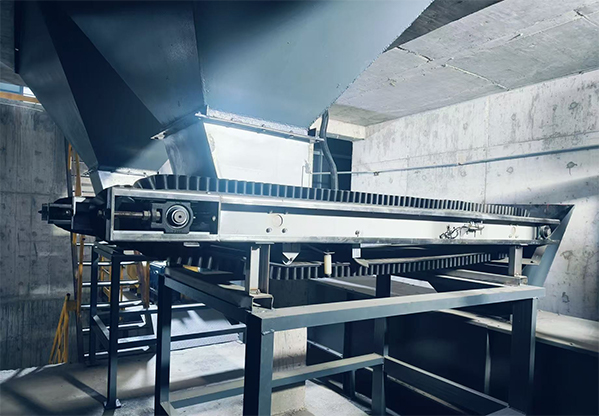

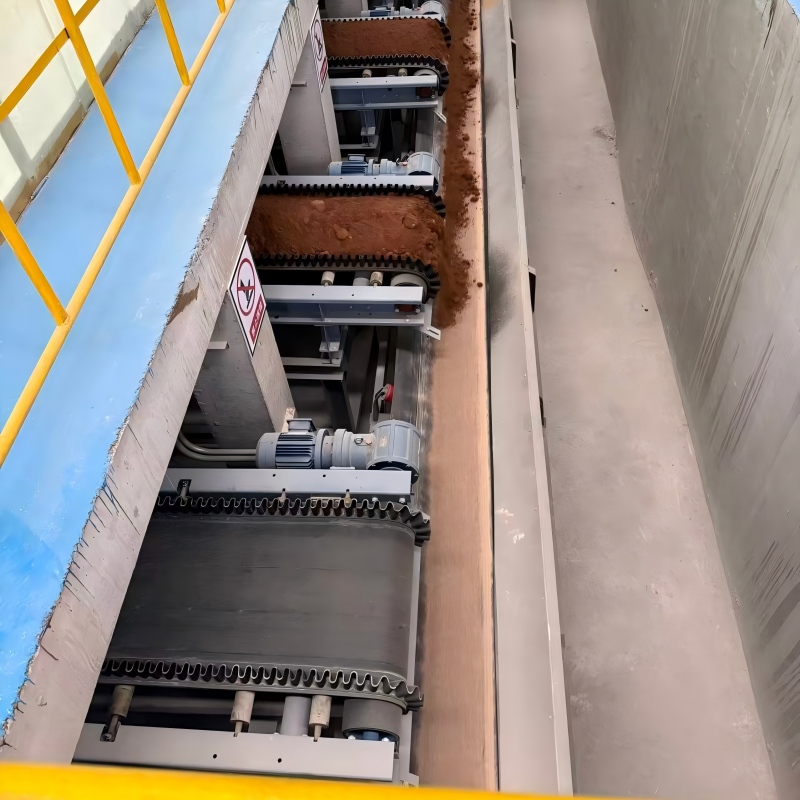

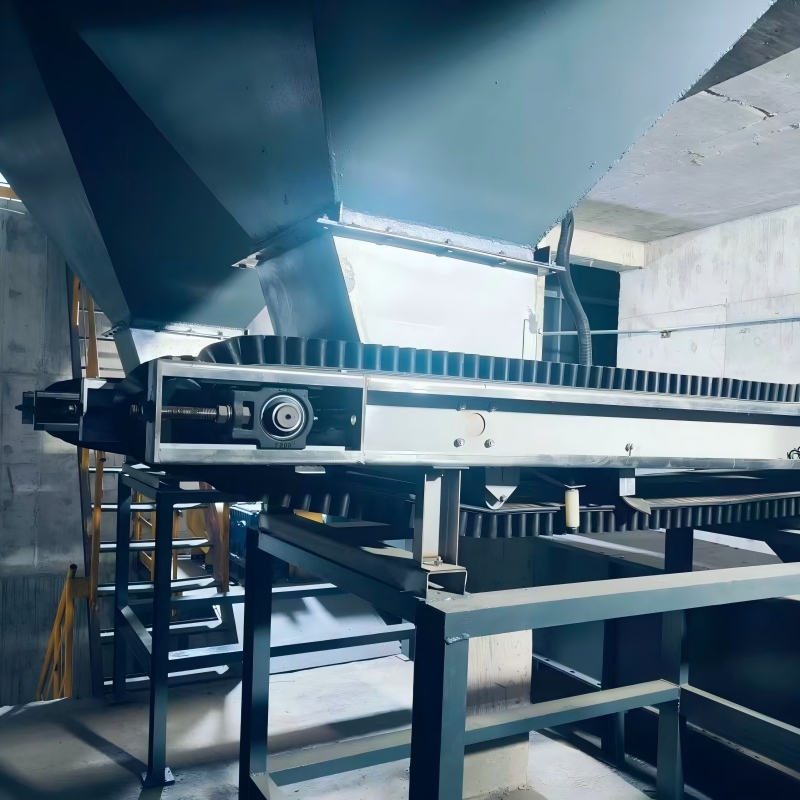

The belt metering scale is a device capable of accurately weighing and continuously transporting fertilizers. It is mainly composed of a weighing bridge, highly sensitive sensors, precise speed measurement equipment, and intelligent control instruments. By synchronously collecting load and displacement signals through the weighing sensor and speed sensor, the real-time flow is calculated through the instrument's integration operation, and the speed regulation device isinterlocked to automatically adjust the belt speed, thereby achieving precise metering and quantitative control of the continuously transported materials. It is specifically used for real-time weight detection and quantitative control during the fertilizer transportation process.
Accuracy range：±0.125%-±1%
Adaptive belt speed：0-6m/s
Inclination Environment：0-30°
 |  |
